V. Еngineering is a production company focused on a developing and creating of technical solutions in the field of paper packaging production.
We offer to our customers everything from one source: engineering, production, realization of equipment commissioning for paper sacks manufacturing of various kinds, types and sizes with the application of flexographic printing. The equipment we produce is a complete production complex for the manufacturing of paper sacks, demanded in the modern market.
By monitoring and analyzing trends in the development of the paper packaging market, the engineers of our company constantly improve the units and mechanisms of the already created equipment in relation to the emergence of more modern automation control systems, components, materials, etc.
V. Engineering always takes into account and implements the individual wishes of the customer and makes the necessary modifications to the design of the equipment.
Let’s create a better tomorrow together!
EQUIPMENT MANUFACTURING
for making paper sacks
PAPER BAG TUBE FORMING LINE
Designed for forming multilayer tube used in the production of paper sacks.
In combination with the Tubular Stacker, the Tubular Machine is a highly efficient system for the automated production of multilayer paper sacks.
Details
PAPER BAG BOTTOM AND VALVE
FORMATION LINE
Designed for the production of single-sided and double-sided glued paper sacks with flexographic printing.
In combination with the Tubular Stacker, it is a highly efficient system for automated production of multilayer paper sacks.
Details
TubeR
Technical specification of the line
Type of the line
Productivity, workpieces / min
Overall dimensions of the Line including receiving tray, m (L x B x H)
Weight, kg
Power-supply voltage, V/Hz
Class of safety protection
Installed capacity, kW
.................................................................................. reconfigurable automatic line
........................................................................................... up to 100
..............15,50 х 2,00 х 2,28
.................................................................................................................................3265
............................................................................................. 3 х 380/50
......................................................................................................... IР45
.................................................................................................................. 6,0
Technical specifications of the telpher
Overall dimensions, m (L x B x H)
Load capacity, t
Weight, kg
Installed capacity, kW
Power-supply voltage, V/Hz
Class of safety protection
................................ 2,00 х 2,50 х 3,90
.....................................................................................< 2
.............................................................................................480
............................................................................... 3
...................................................... 3 х 380/50
................................................................... IР45
Additional information
Products produced by the line (parameters)
tubular workpiec
Length of tubular workpiec, mm
Width of tubular workpiec, mm
Layer count, pcs
Polyethylene layer between layers of kraft paper
Knife cutting:
- straight cutting
- stepped cutting
- cutting to length of the tubular workpiec
- mark cutting
Interlayer gluing
Longitudinal gluing
Perforation:
- continuous
- sectoral
.
............................................................................................................... 200 - 800
................................................................................................................... 300-600
............................................................................................................................................... 2 - 4
................................................................................... admissible
.................................................................................................................................. envisaged
........................................................................................................................... not envisaged
...................................................................................................... yes
................................................................................................................................................. yes
.................................................................... three rollers adhesive application system, spot glue,

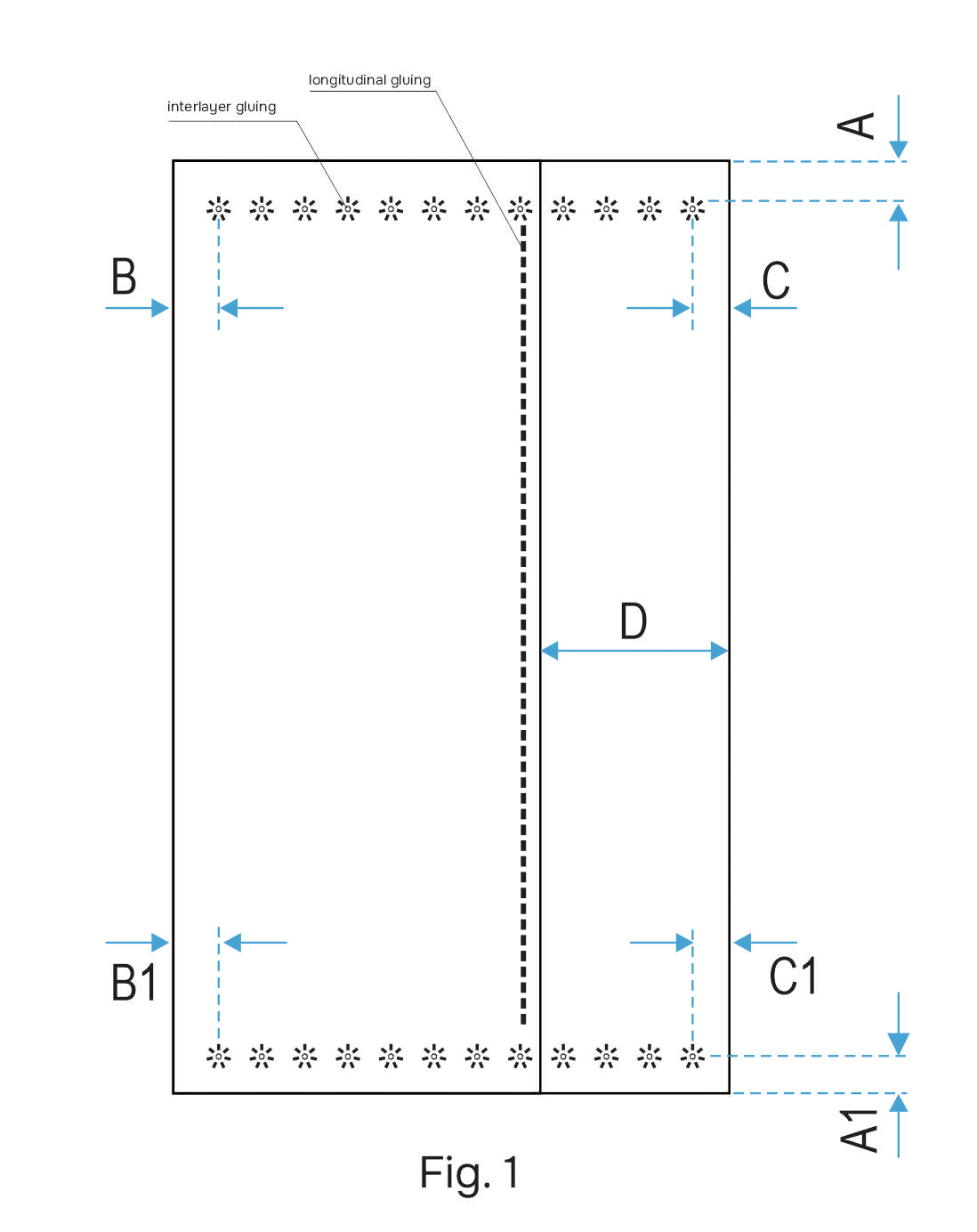

parameters А, А1, В, В1, С, С1 adjustable. Fig. 1
................... continuous adhesive application with interruptions at the edges of the tube billet,
parameter D adjustable. Fig. 1

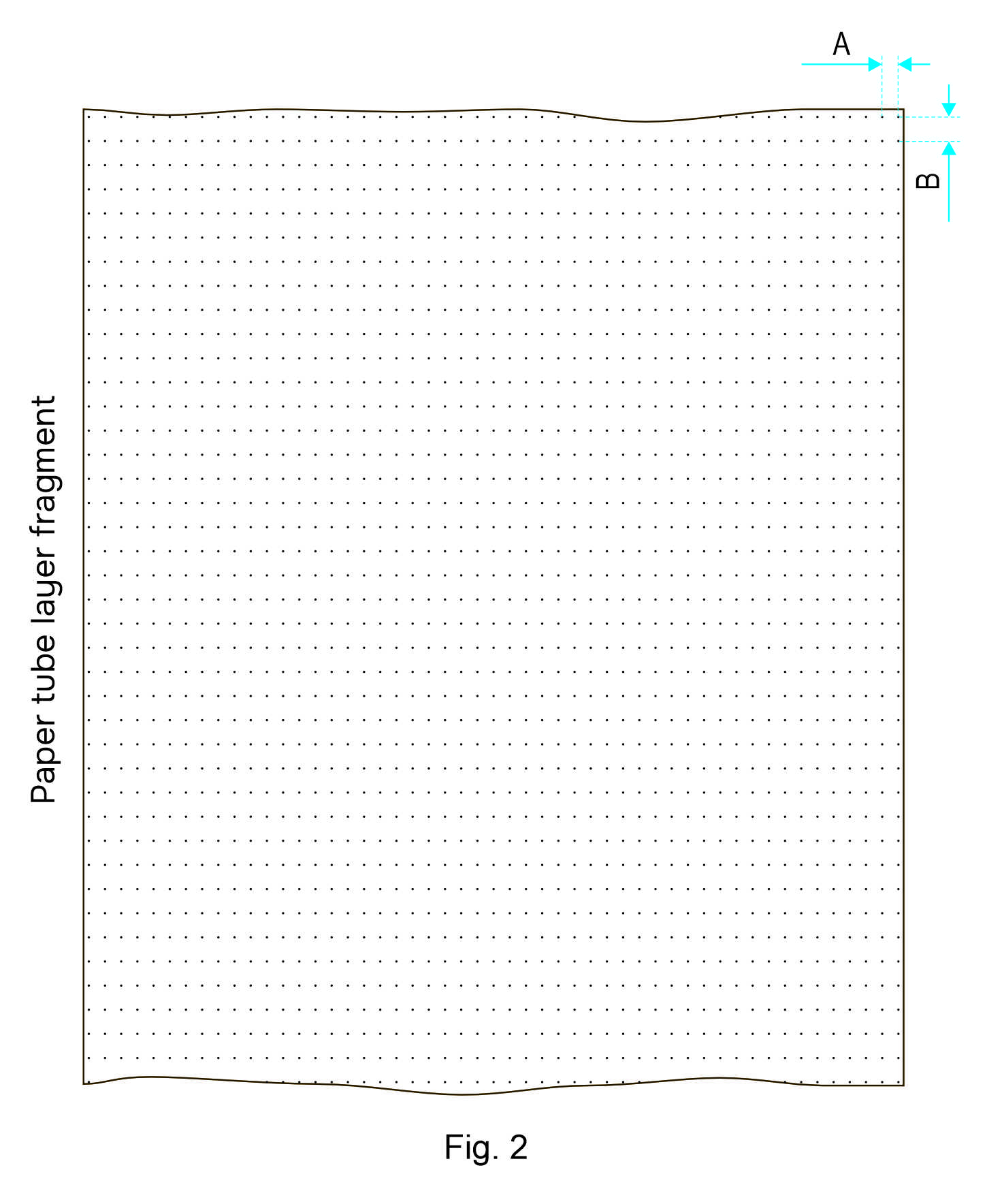

........................................................................................ yes, parameters A, B - adjustable. Fig. 2

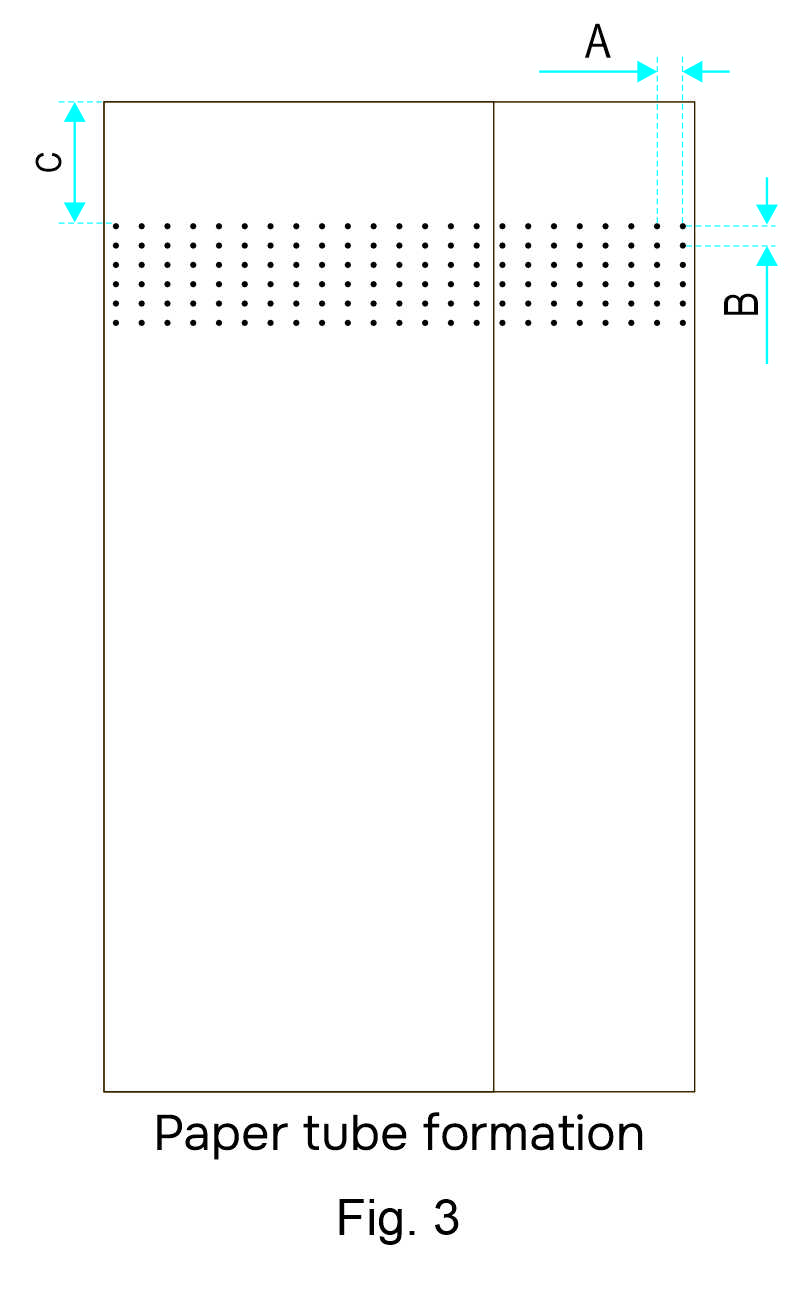

....................................................................................... yes, parameters A, B, C - adjustable . Fig. 3
Supply configuration
Section of the stands, pcs
Lengthwise and cross-gluing section, pcs
Rolling up and cutting section, pcs
Accelerating conveyor, pcs
Receiving tray, pcs
Transport and loading mechanism, pcs
.......................................................1
...............................1
..........................................1
......................................................1
..................................................................1
...................................1
BOTTOMER
Type of the line
Productivity, bags/min
Overall dimensions (L x B x H), m
Weight, kg
Power-supply voltage, V/Hz
Class of safety protection
Installed power, kW
Air consumption, L/min
................................................................................... reconfigurable automatic line
....................................................................................................... up to 100
....................................................................... 20,80 х 2,17х 2,03
................................................................................................................................ 6240
............................................................................................ 3 х 380/50
.......................................................................................................... IР45
.....................................................................................................................11,0
...................................................................................................at least 350
....................................................................................................................................................................................... at least 65
.............................................................................................................................................. admissible
...................................................................................................................................................................... from 2 up to 4
.................................................................................................................................................................... admissible
.......................................................................................................................................................................................... admissible
...................................................................................................................................................... 3
............................................................................................................... at least 100
......................................................................................... 20
tubular workpiec
Kraft paper:
Kraft paper density, g/m2
Kraft paper use of various density inside the tube
Kraft paper layers amount, pcs
Film between the kraft paper layers
Laminated kraft paper
Maximum deviation in length, breadth, diagonally, mm
Lengthwise glueing: uninterrupted, without squeezing the glue at the seams,
distance between the tube edge and the seam (size D – Fig. 1), mm
Interlayer glueing: dotted, without squeezing the glue at the seams,
distance between the tube edge and glue dots line (sizes A, A1, B, B1, C, C1 – Fig. 1), mm
Roll material
Bobbins for making bottom tape: kraft paper, density:
kraft paper, density, g/m2
bobbin diameter, mm
Bobbins for making valve tape:
Kraft paper density, g/m2
bobbin diameter, mm
Bobbins are wound on the spool, inner diameter, mm
Kraft paper winding density in a bobbin
................................................................................... at least 70
..................................................................................... at most 600
................................................................................... at least 70
..................................................................................... at most 400
.................................................. 76
.................................................................... high
Glue
Paint for flexoprinting
.......................................................................................................... starch-based
................................................................. water-based
Fig . 1
Open sack
Breadth (size A, – Fig. 2), mm
Length (size B – Fig. 2), mm
Bottom breadth (size C – Fig. 2), mm
............................................ 400-500
............................................ 450-1100
............................... 90-160
Fig. 2
............................................................. 340-500
............................................................. 530-1100
.................................................. 90-160
...... 310-800
Enclosed valve sack
Breadth (size A – Fsg. 3), mm
Length (size B – Fig. 3), mm
Bottom breadth (size C – Fig. 3), mm
Distance between sack bottom centers (size B1 – Fig. 3), mm
Fig. 3
Tubular.................................................................

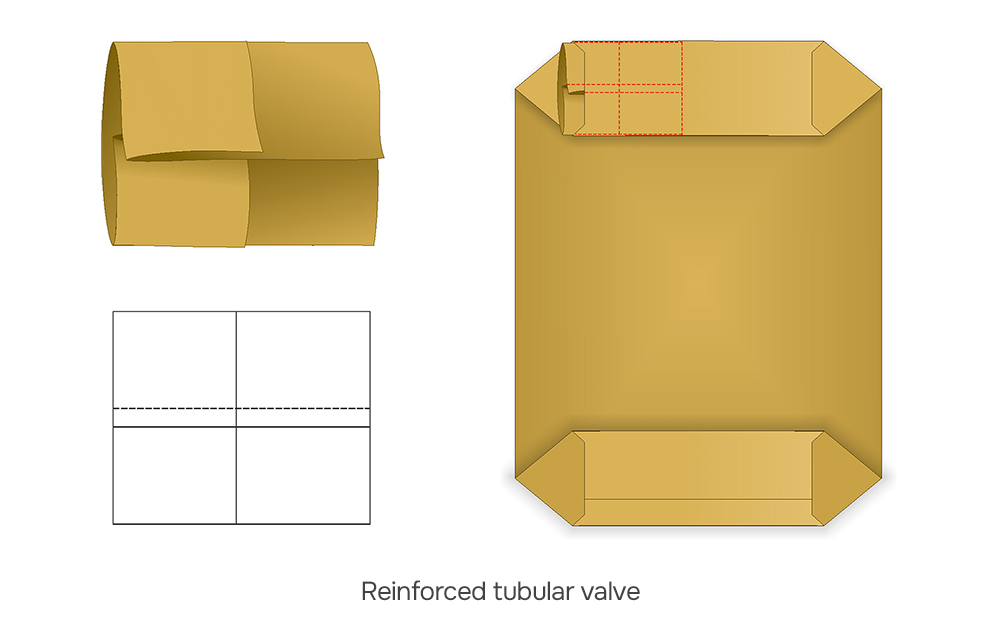

Reinforced tubular................................................

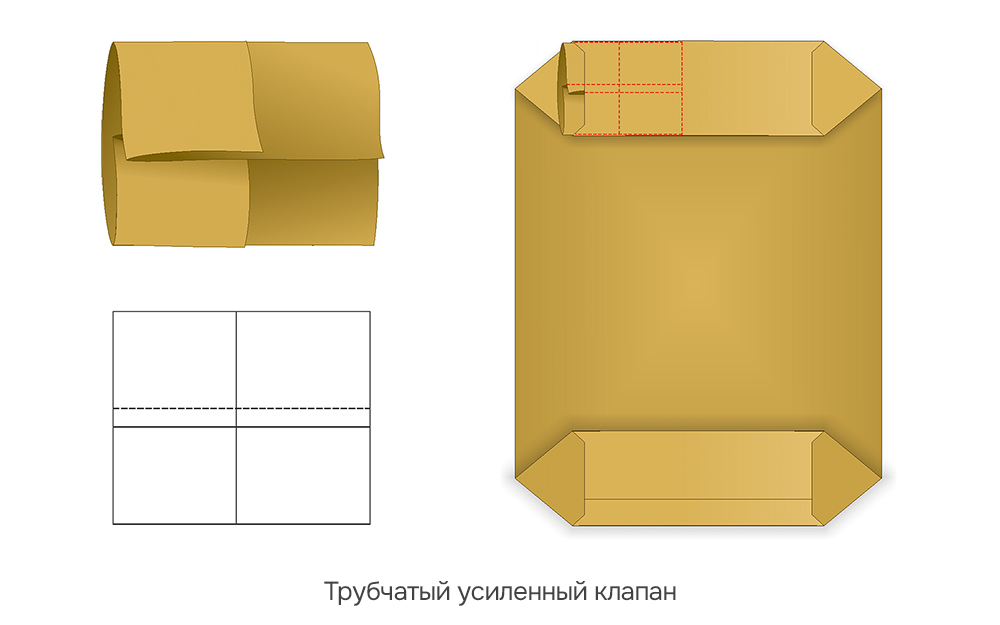

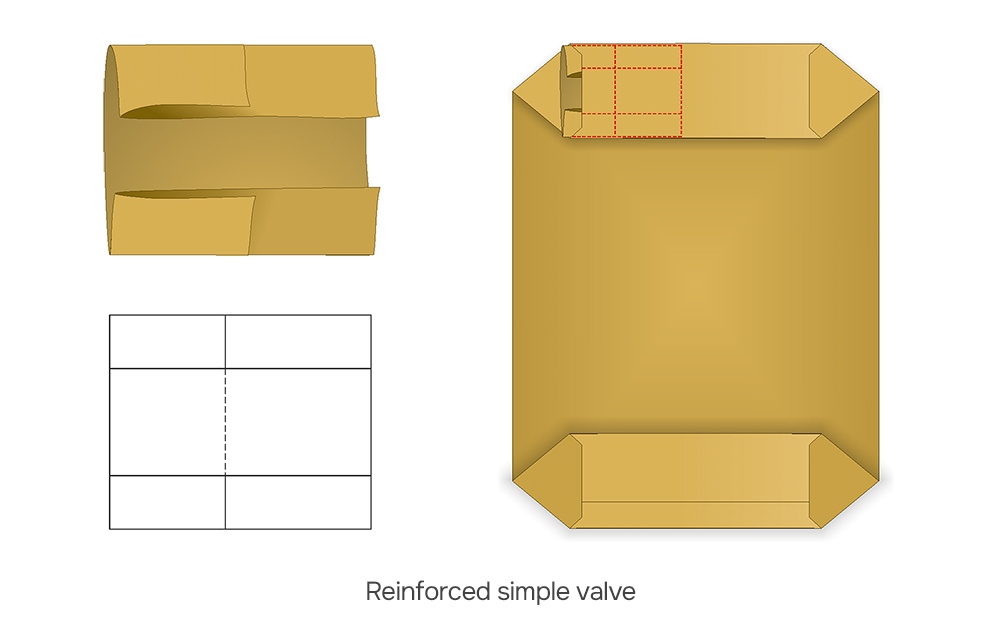

Reinforced simple................................................

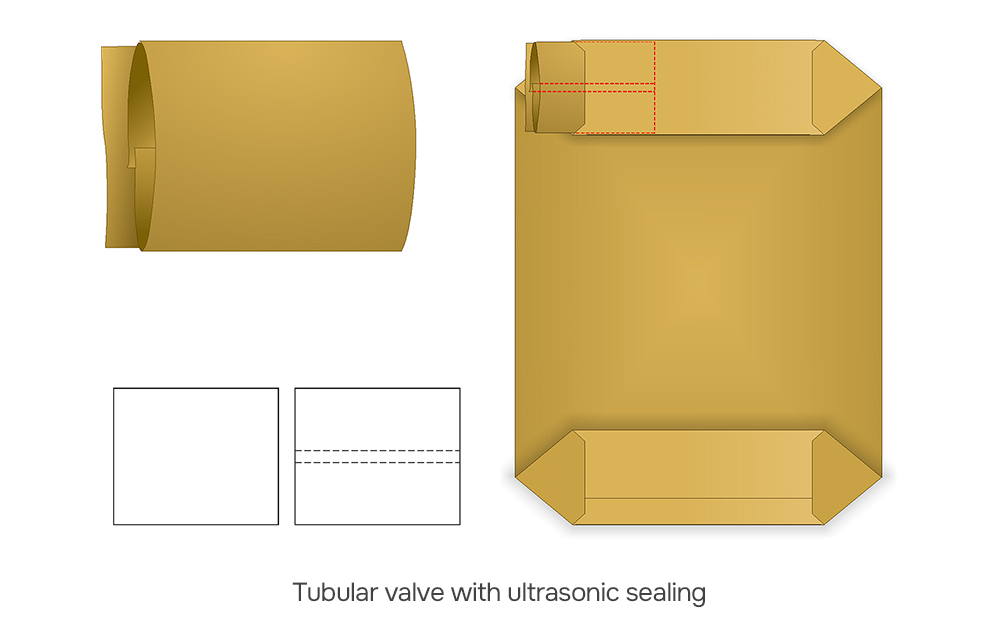

Tubular with ultrasonic sealing.............................

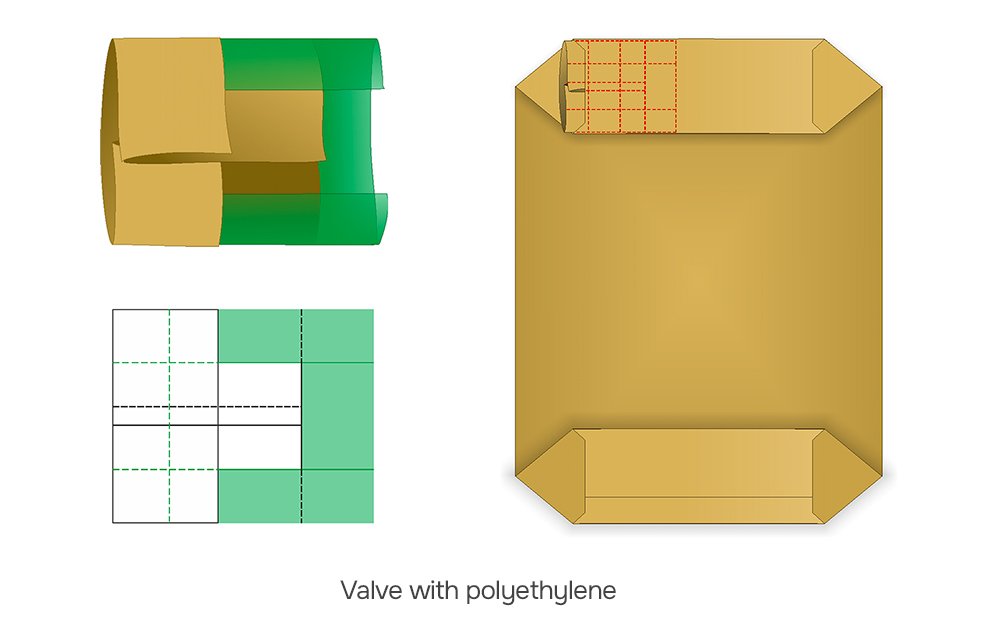

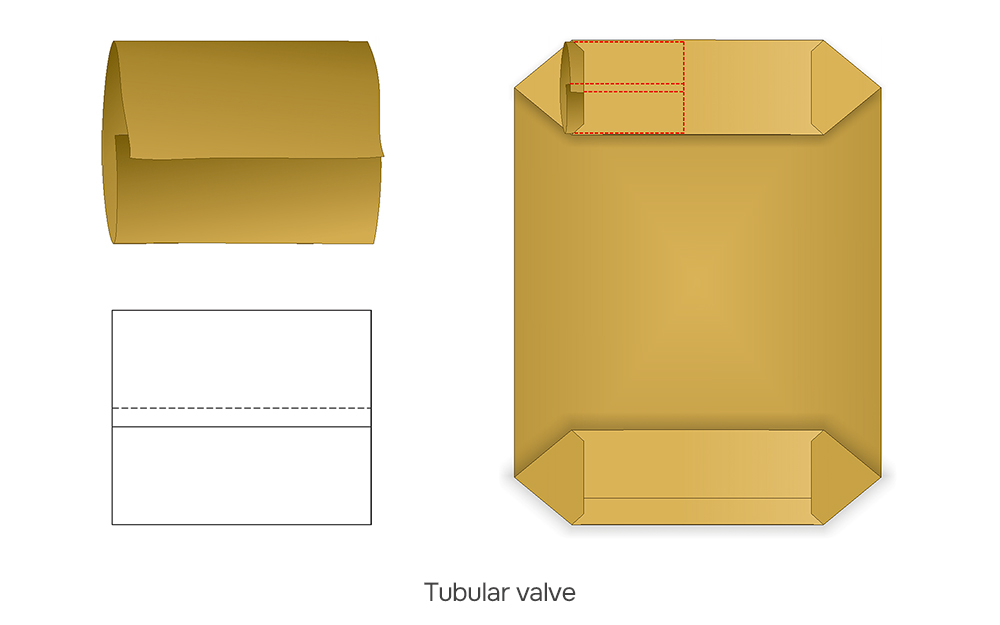

Valve with polyethylene........................................
Air compressor
Operating pressure,atm
Productivity, ltr/min
Receiver, ltr
Bobbin cutter
Winding density
Forklift truck
Lift capacity, kg
Glue making device
Tankage, ltr
............................................... 6-12
................................. at least 350
..........................................................100
.................................................. high
................................................. 2000
......................................................... 200
